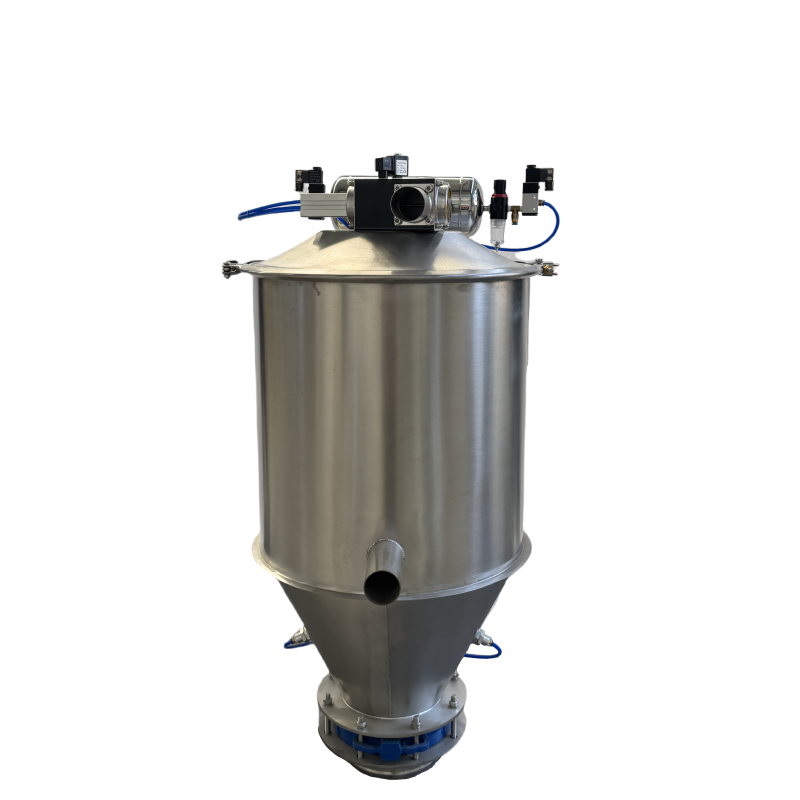

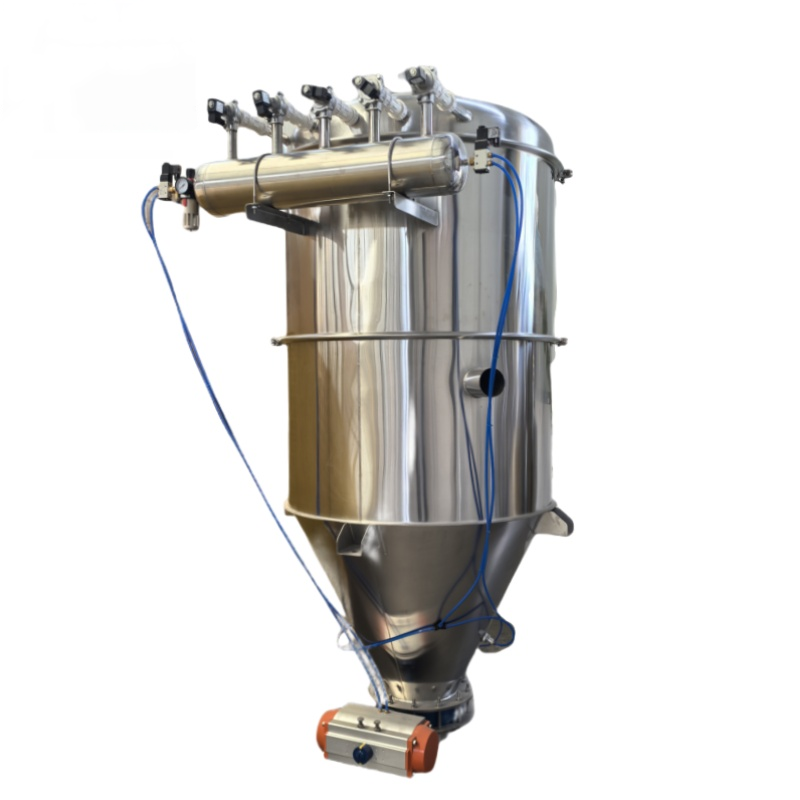

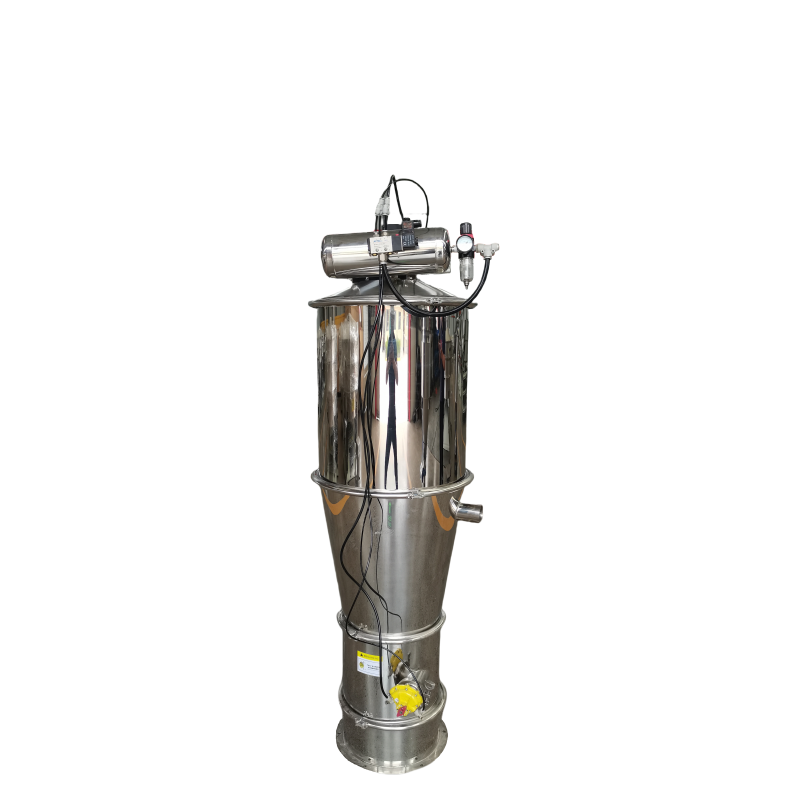

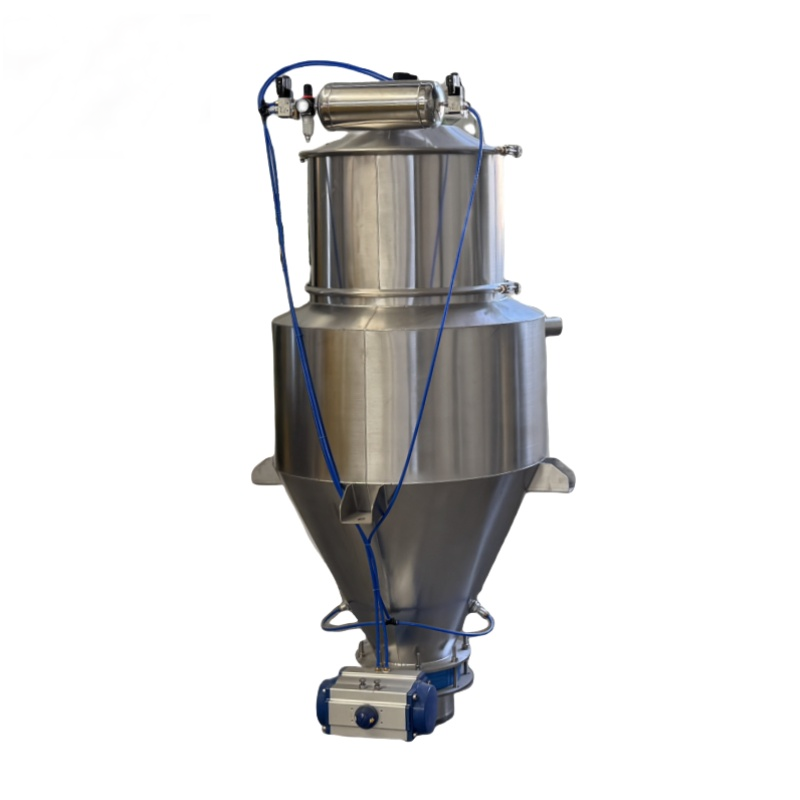

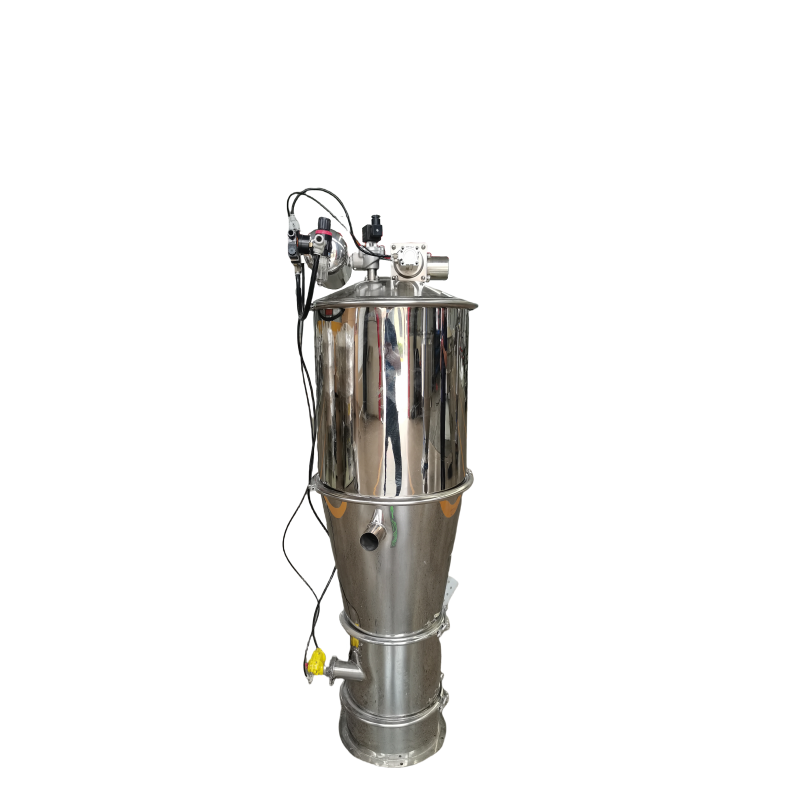

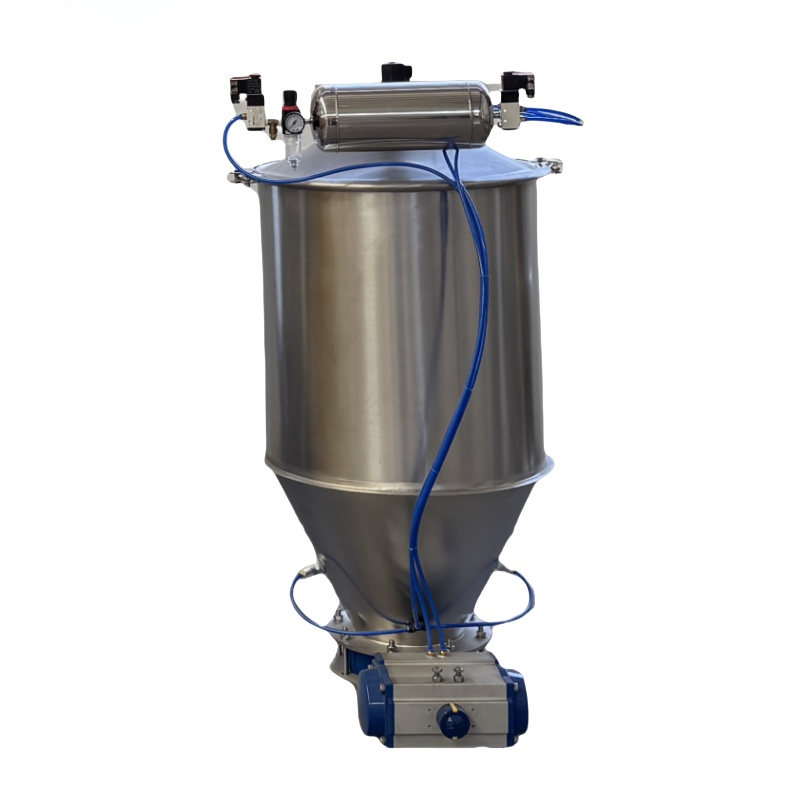

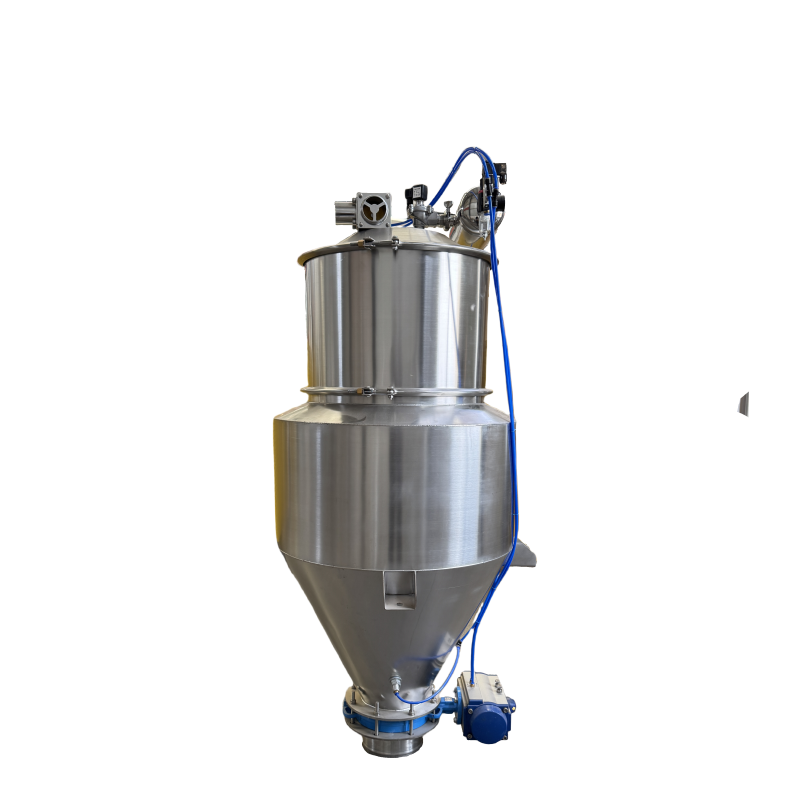

Vacuum Conveying Machine

The vacuum conveying machine operates by utilizing compressed air to generate high vacuum through a vacuum generator for material transportation. When compressed air is supplied to the vacuum generator, it creates negative pressure, forming a vacuum airflow that draws materials into the suction inlet. This material-air mixture travels through the transfer hose to the system's holding chamber. A precision filter completely separates materials from the air stream. After a preset duration (adjustable feeding cycle), the compressed air supply is interrupted, halting vacuum generation. Simultaneously, the discharge gate at the chamber base is pneumatically activated, releasing materials into downstream equipment as vacuum pressure dissipates. Concurrently, stored compressed air in the air reservoir initiates a reverse pulse to clean the filter automatically. Following a configurable discharge period, compressed air restarts the vacuum generator, recreating vacuum pressure to close the discharge gate and recommence material intake. This fully automated cycle repeats continuously, enabling uninterrupted material supply to receiving equipment through precise pneumatic coordination.

Product Advantages

1. Simple structure, small size, maintenance-free, low noise and convenient control

2. It is not restricted by distance or height and can be connected freely on the production line

3. The material transportation is free of residue and meets food-grade and GMP requirements

4. It can be equipped with a load cell and a quantitative conveying system

5. It can be freely combined and connected with packaging machines and screening equipment.

6. The control system can be equipped with material level control to automatically control the feeding time based on the material level.

Product Parameter

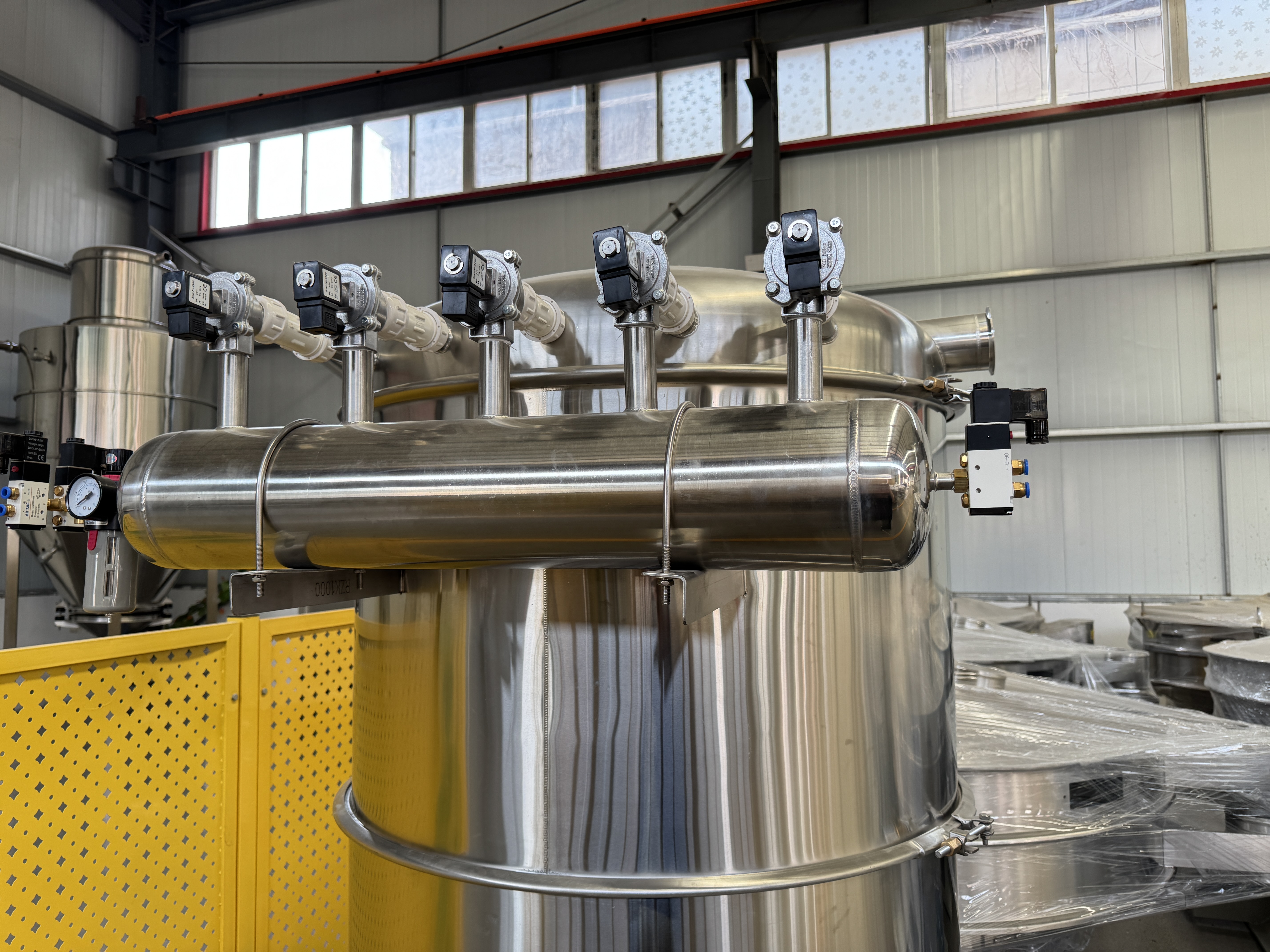

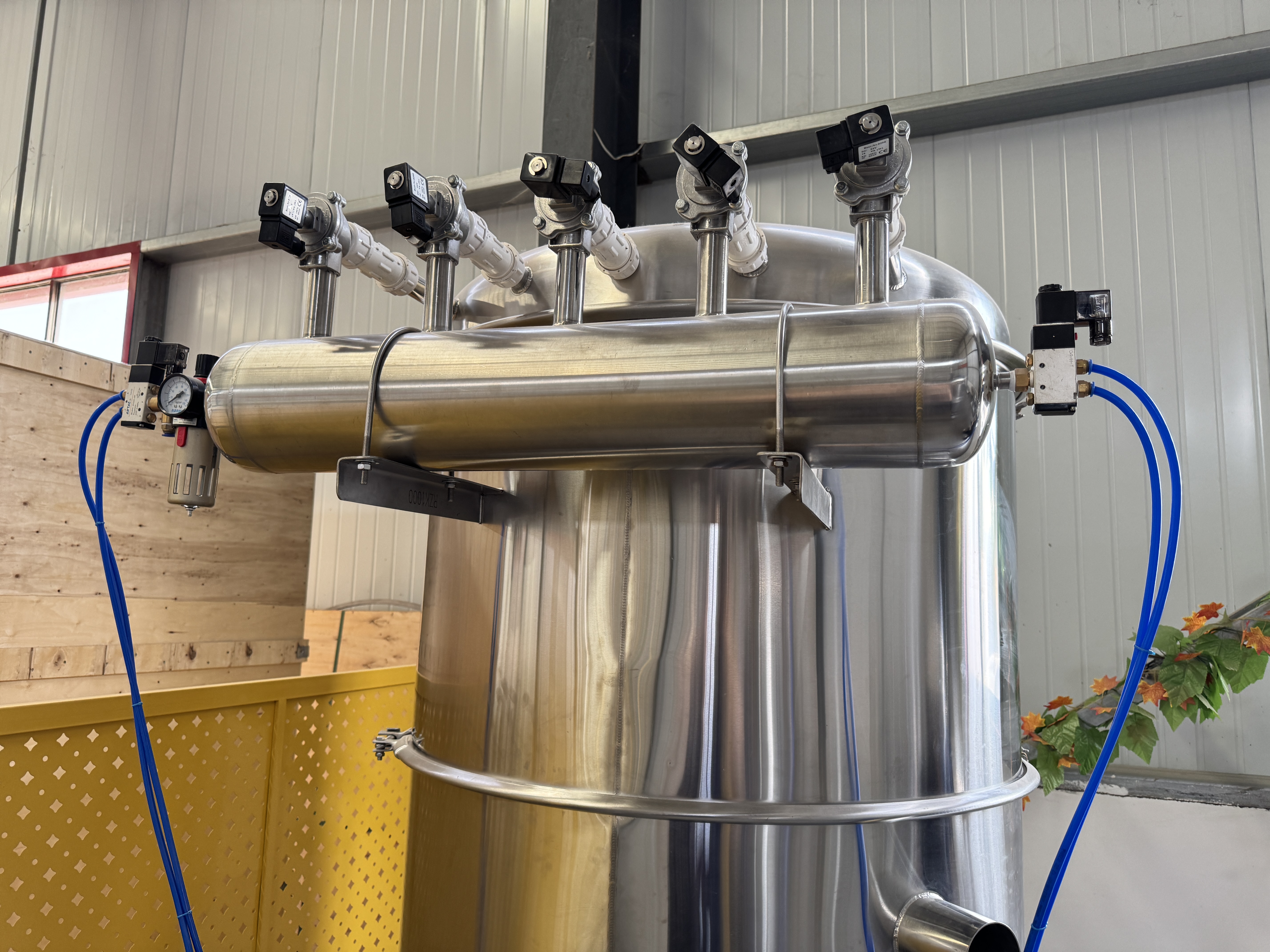

Product Detail

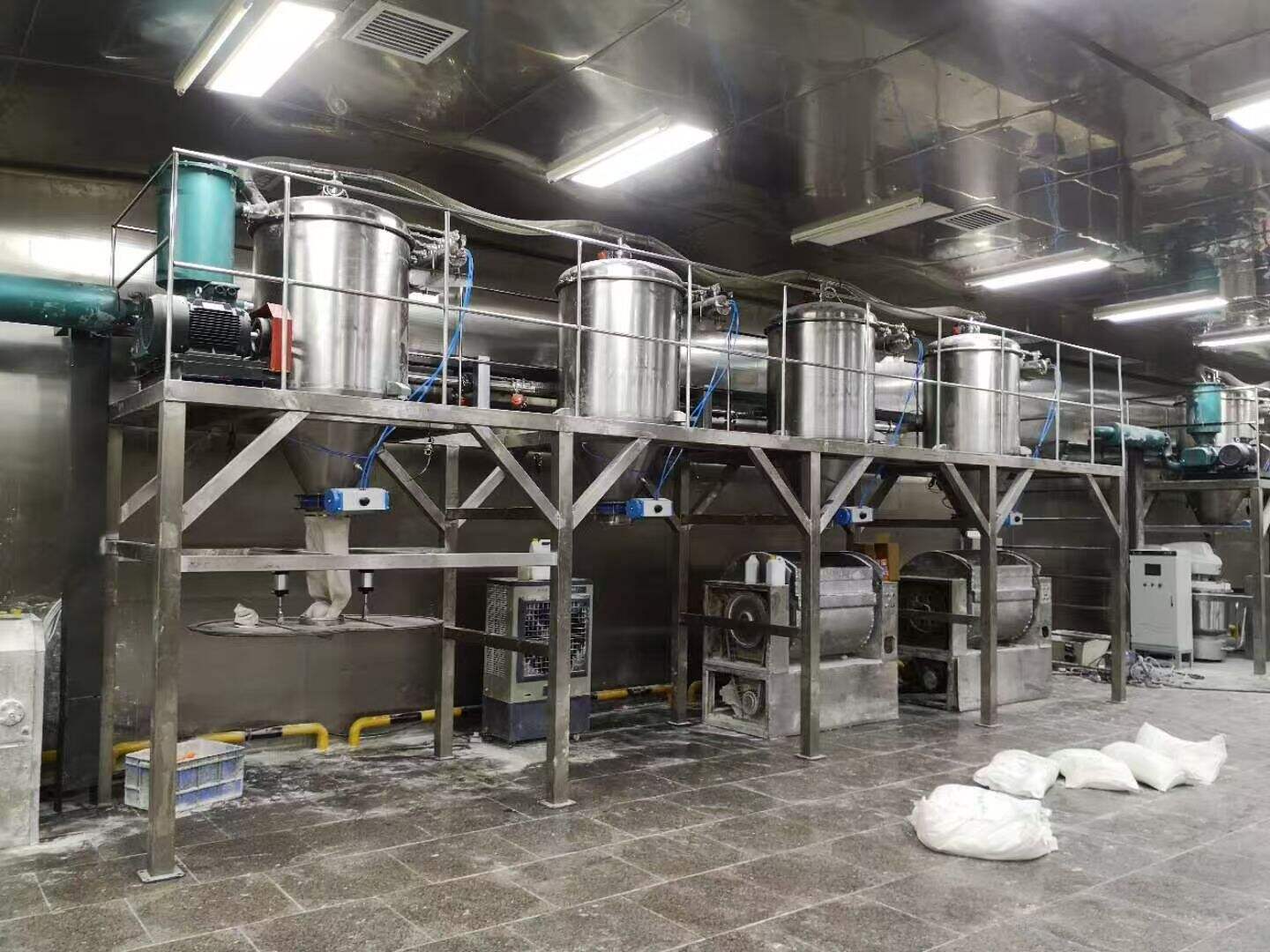

Product Application
